DIP TUBE VSI

New product

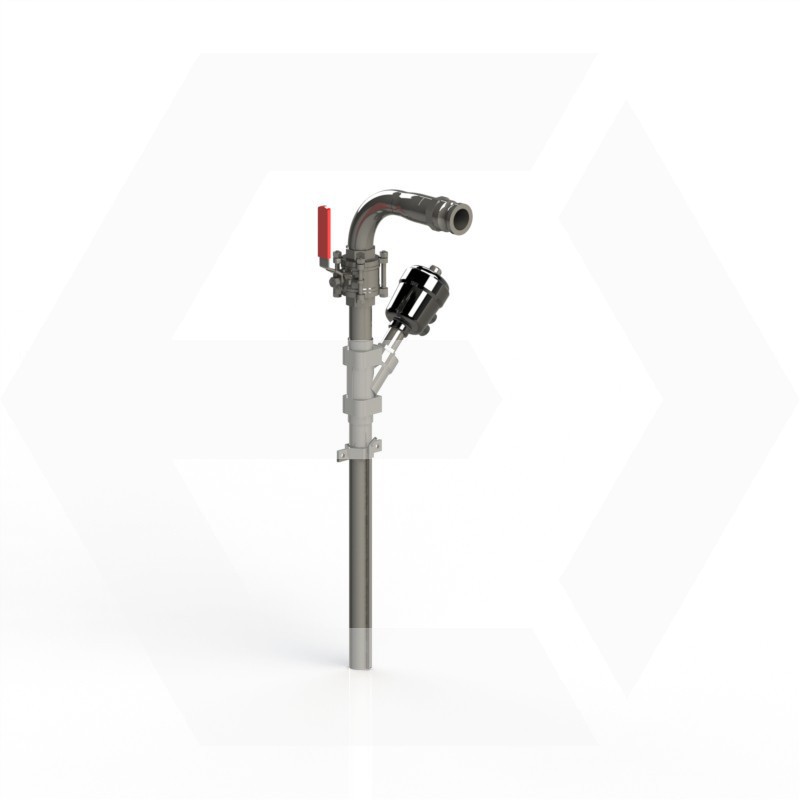

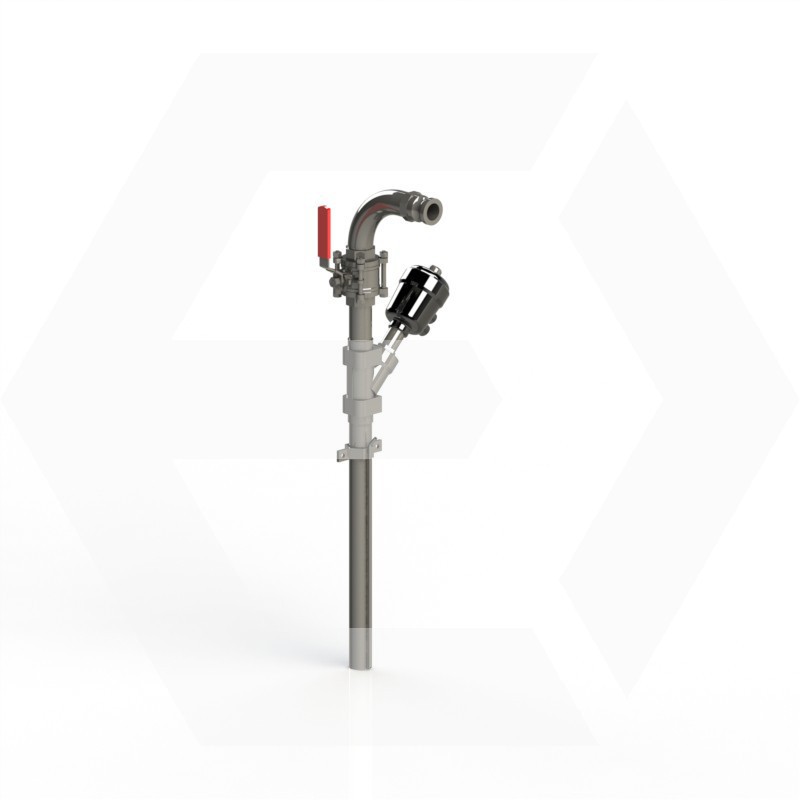

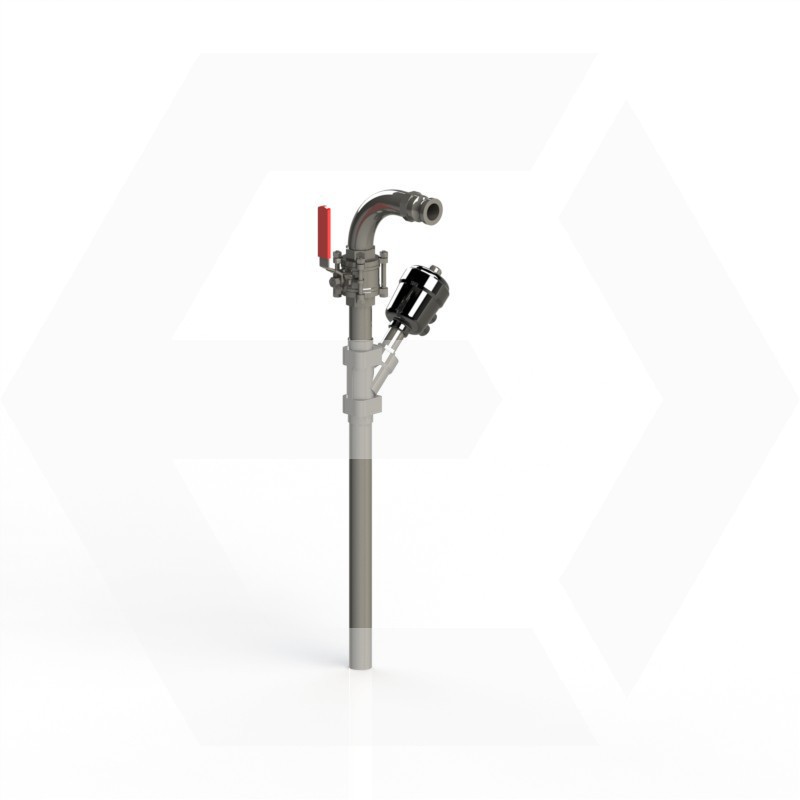

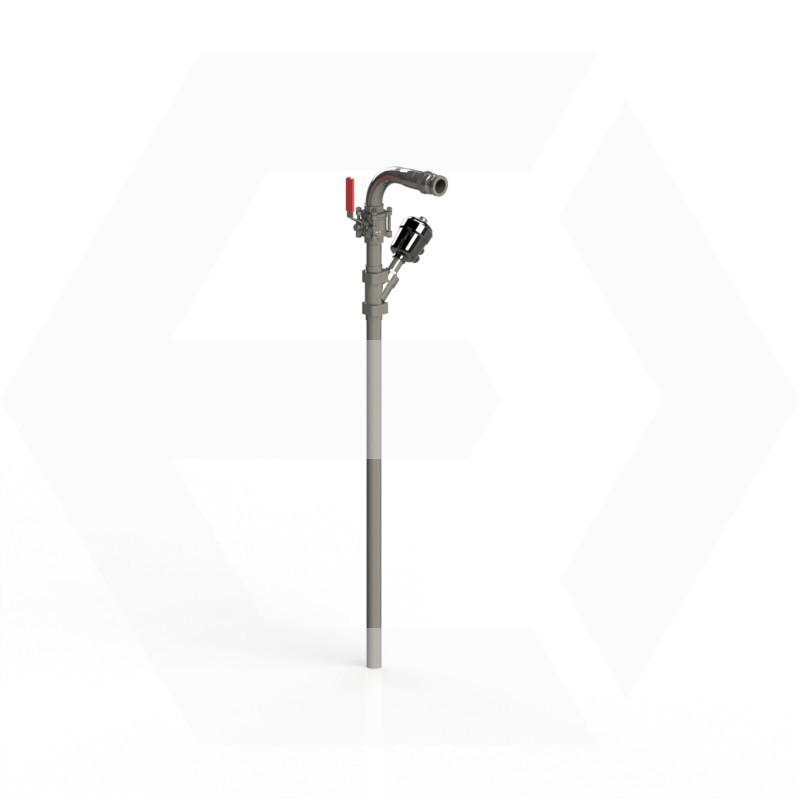

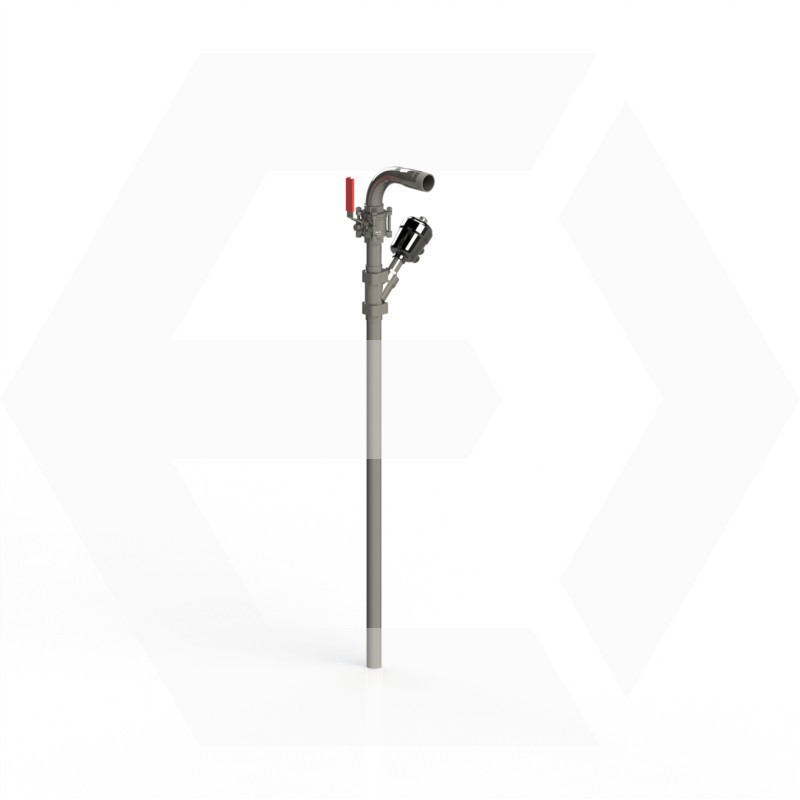

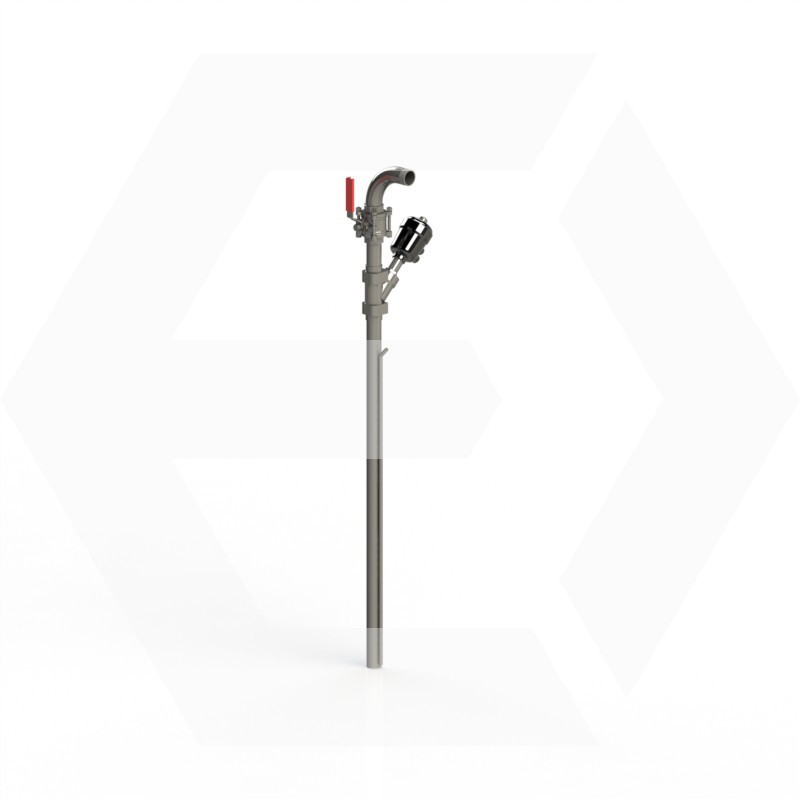

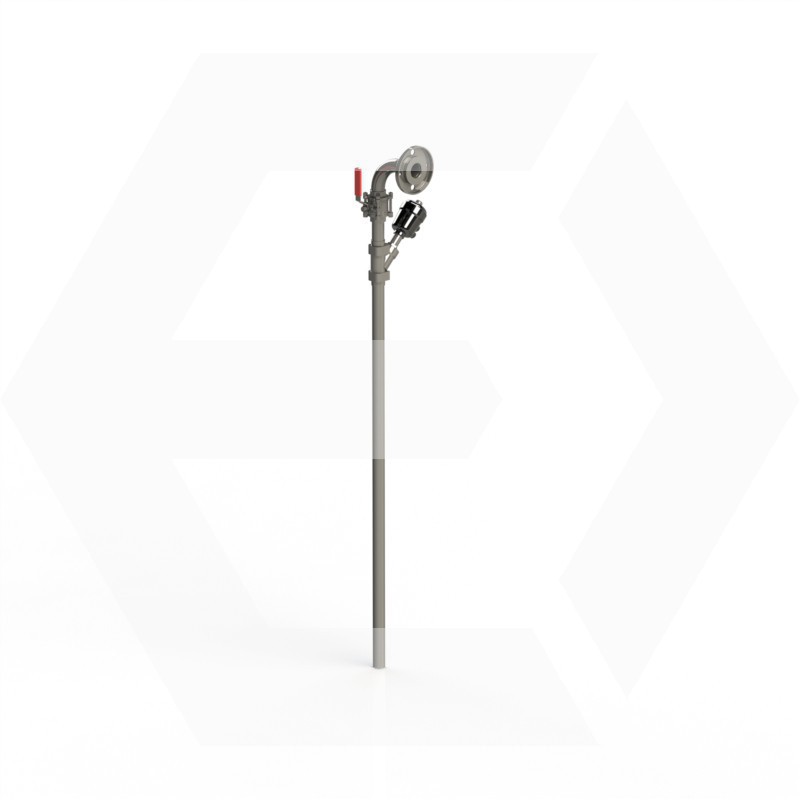

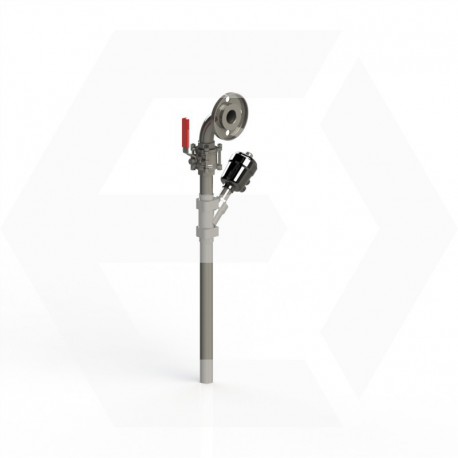

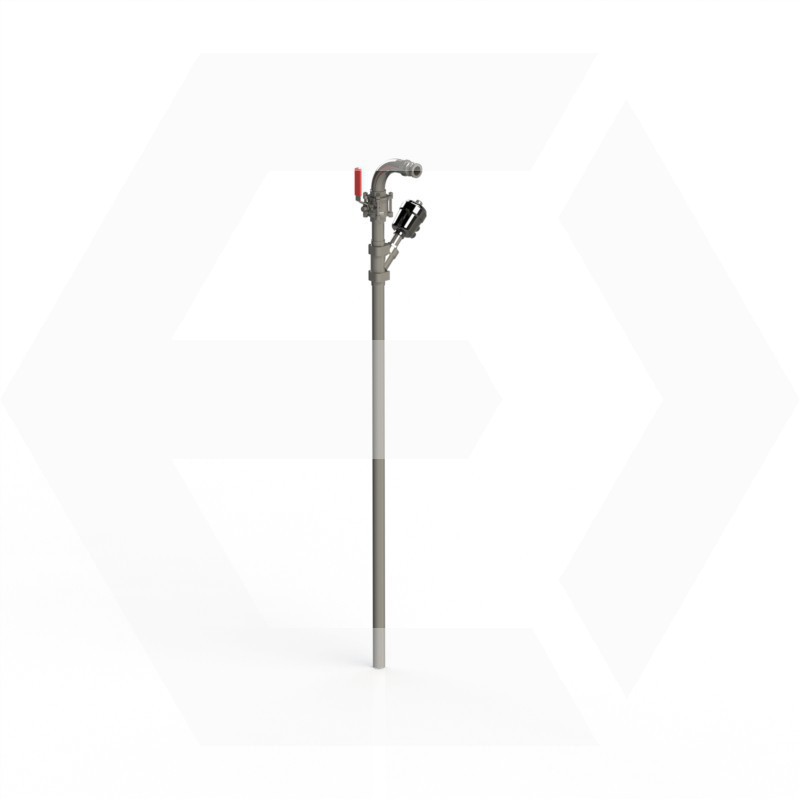

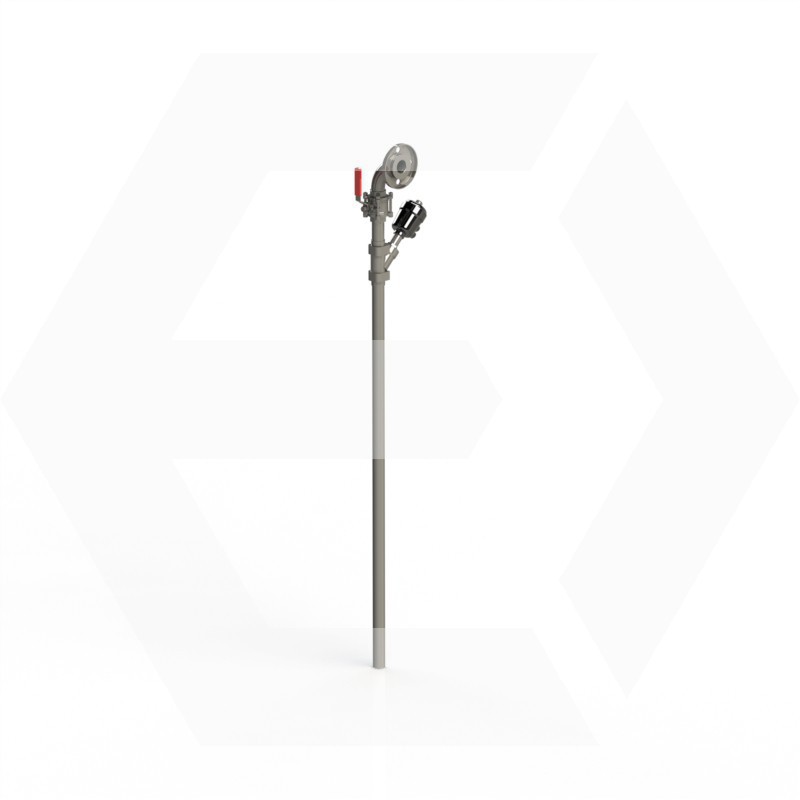

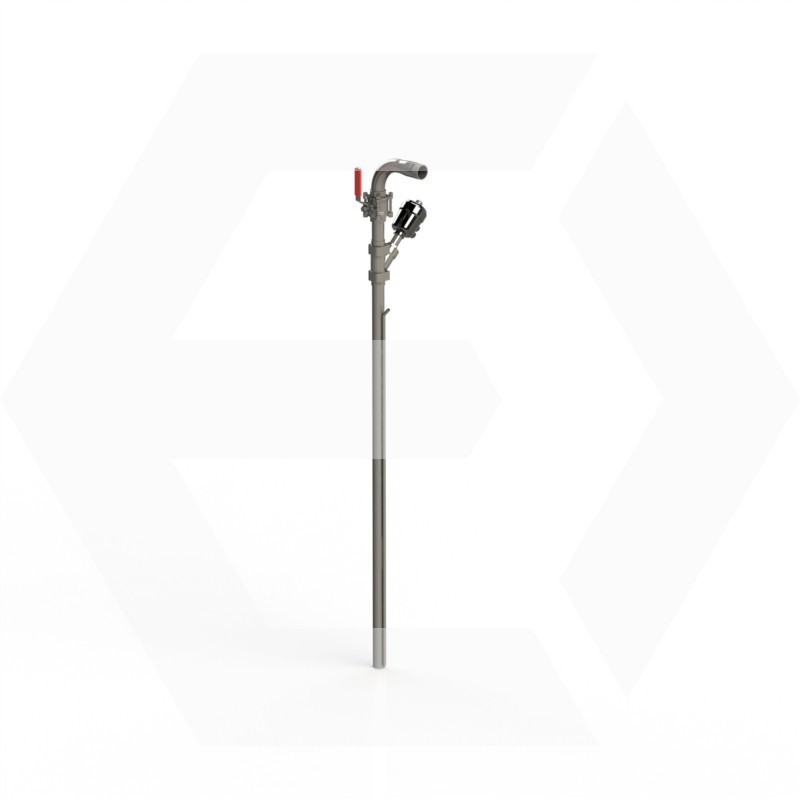

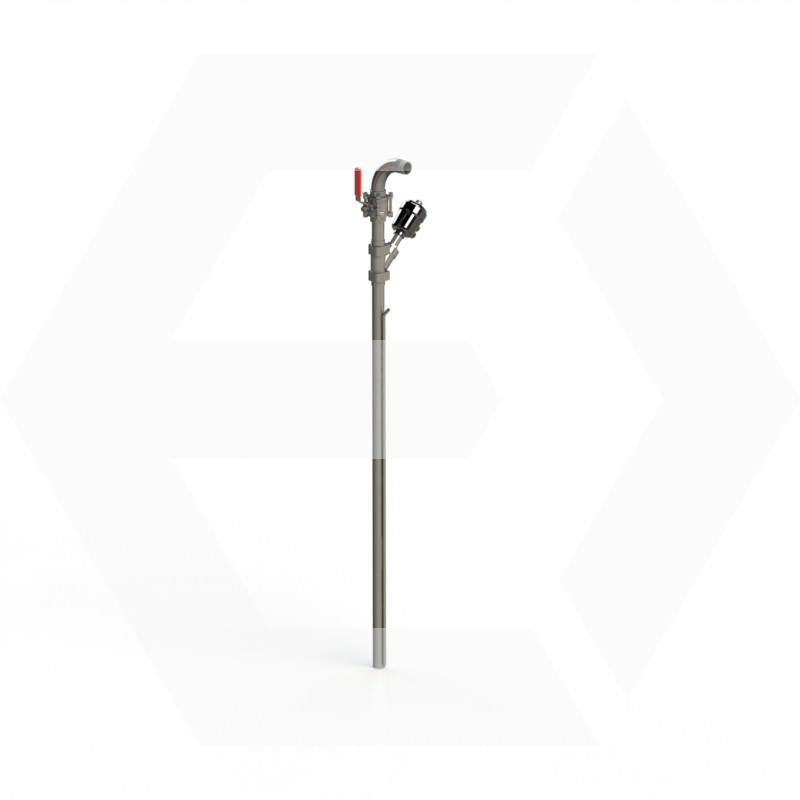

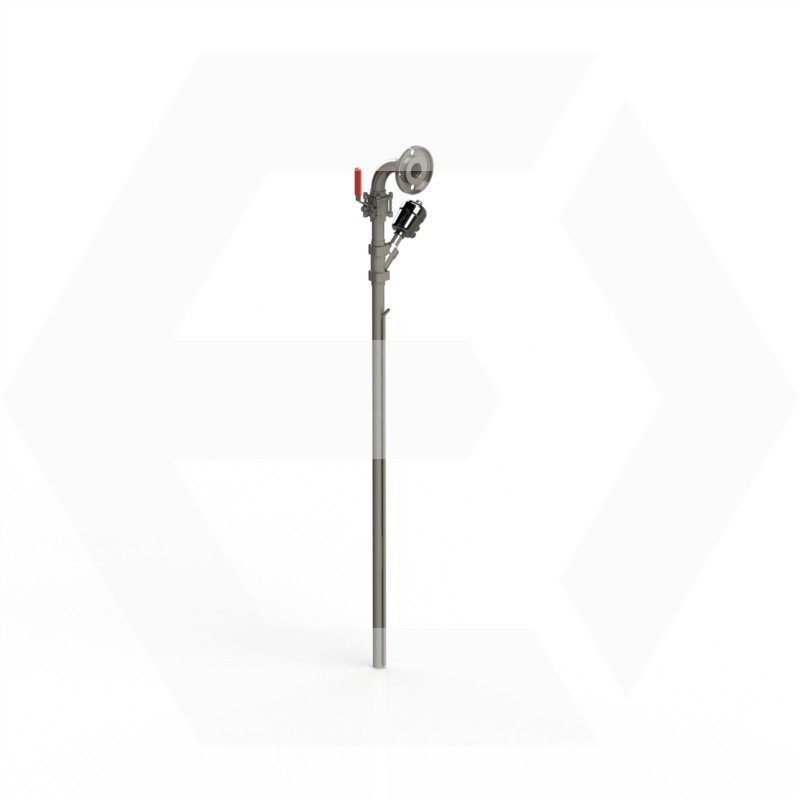

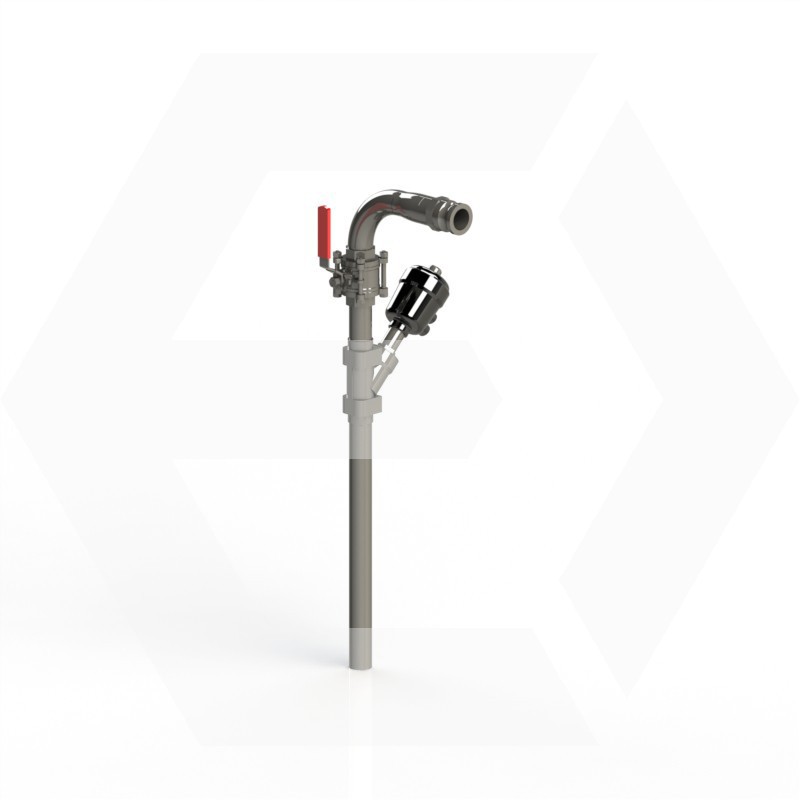

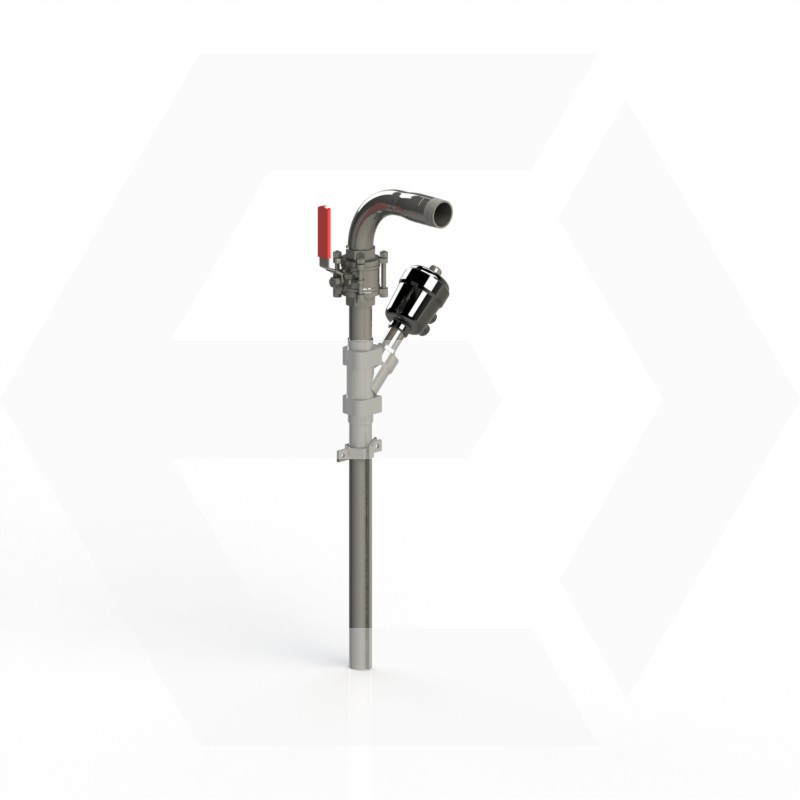

Dip tube VSI diameter 38 stainless steel 316L.

Equipped with a manual valve and a VSI actuator.

More details

To order - deadline 5-6 weeks

1 566,00 €

Add to wishlist

More info

The VSI dip tube diameter 38 stainless steel 316L is equipped with a manual valve to cut or refine the flow of liquid.

The shut-off actuator can be operated in single action.

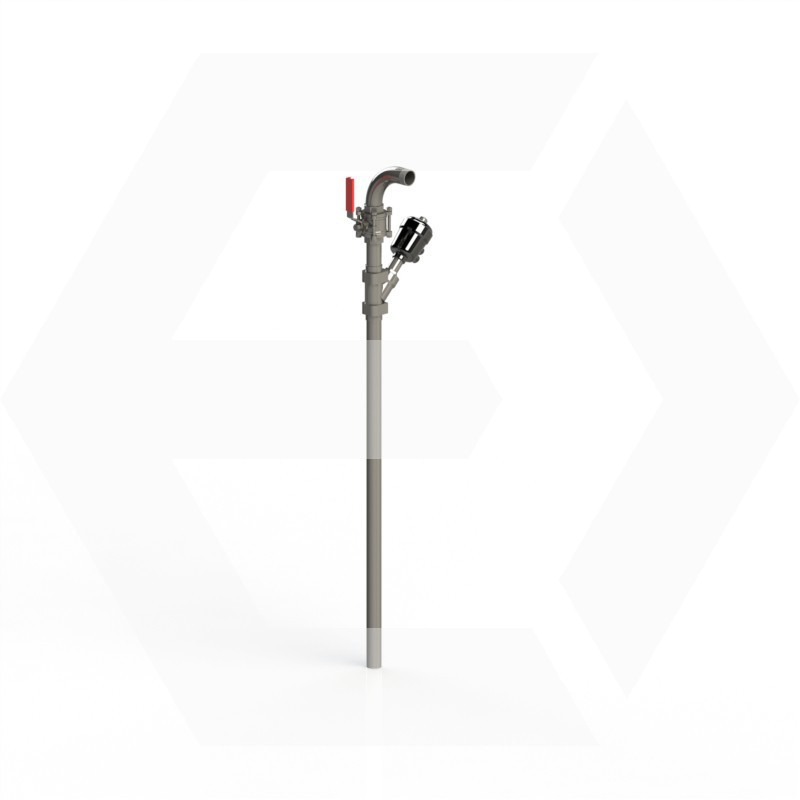

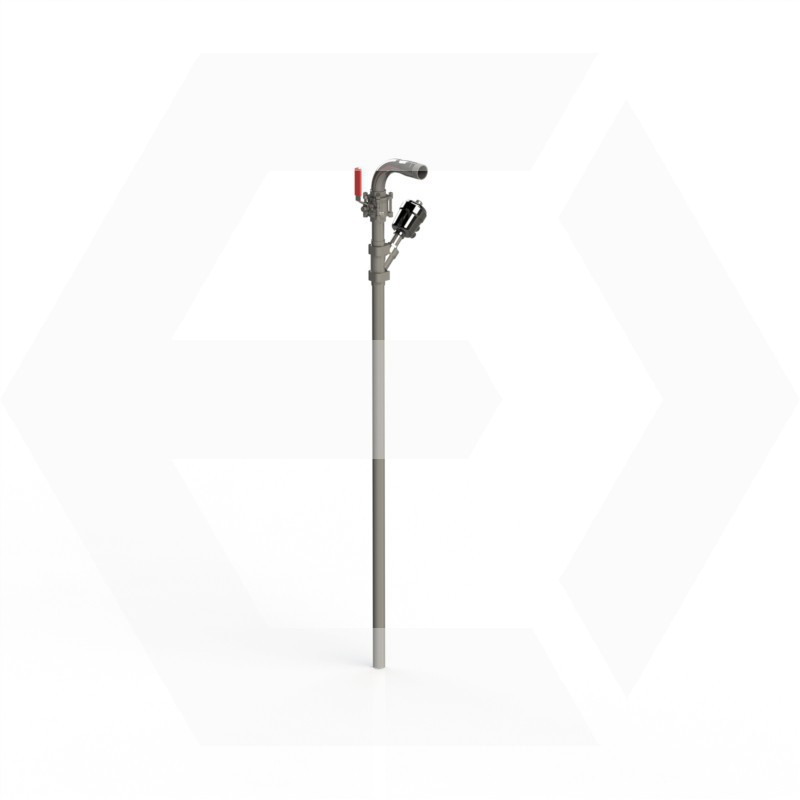

Length of choice:

  • 420 mm
  • 900 mm
  • 1200 mm

Output with choice:

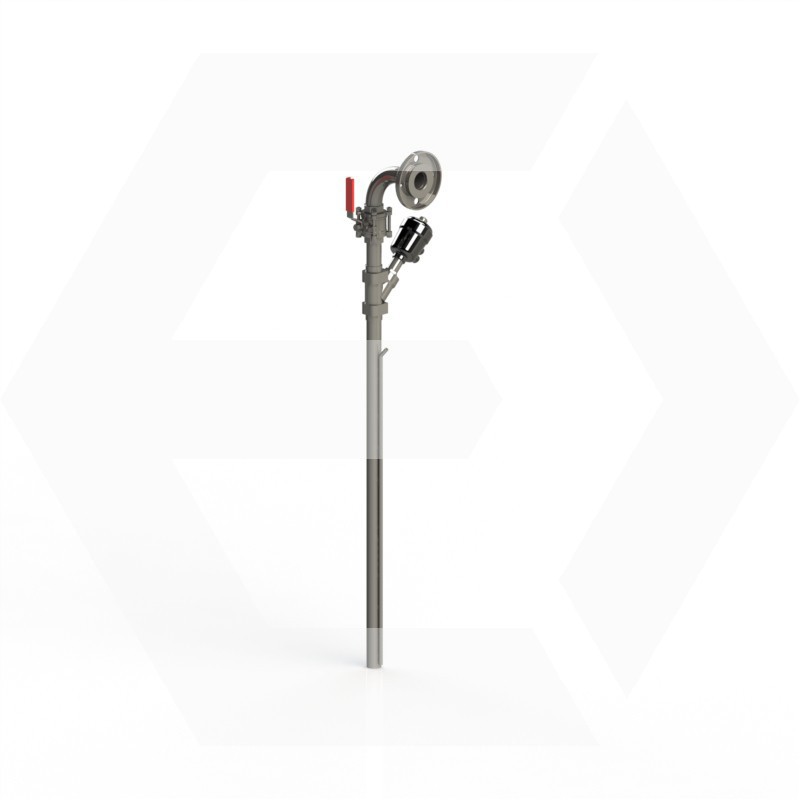

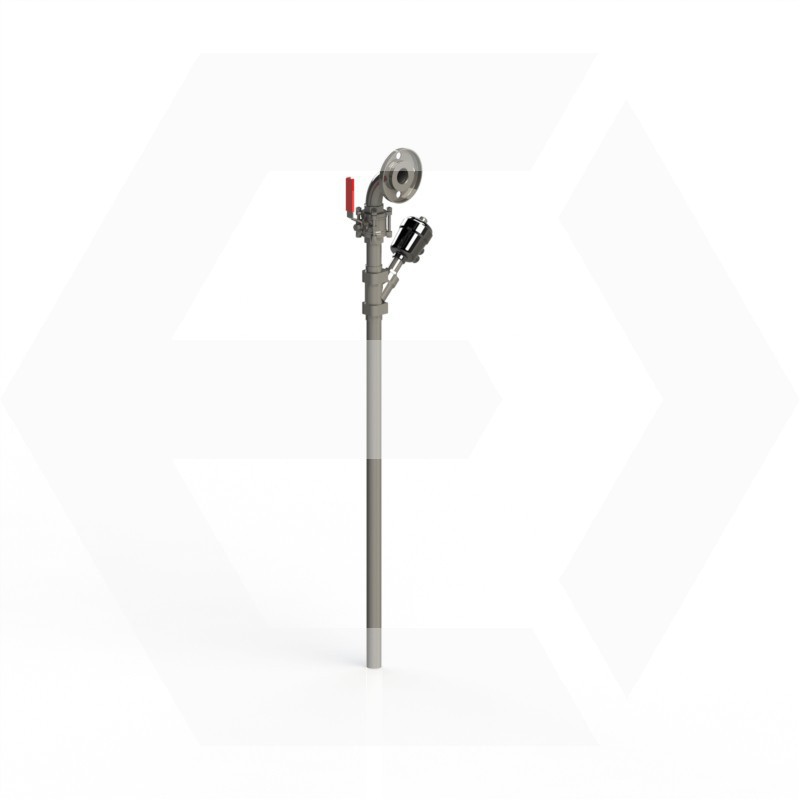

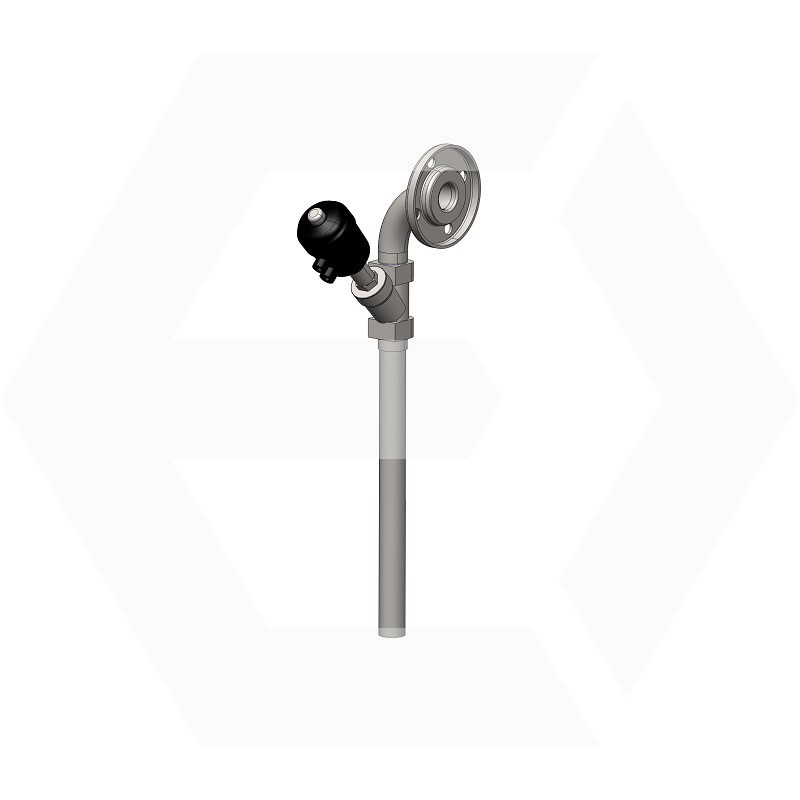

  • Flange DN32
  • Flange DN40
  • DN32
  • DN40
  • Camshaft connection DN32
  • Camshaft connection DN40
  • Tailored

Pre-fitting overfill according to choice.

Data sheet

HeightDe 837 mm à 1665 mm
WidthDe 122 mm à 253 mm
Depth273 mm
Weight8.7 Kg à 11.4 Kg
PackagingJerrican, drum and container
Product supplyGravity, pump, pressure
General constructionStainless steel
Product circuitStainless steel 316L
Pneumatic supply6 bars clean and dry / 100L/h
Diameter of the caneDiameter 40 mm default
Cane outletDN32 ou DN40
OverflowPré-équipement en option

Ask a question

NO registration required!

1 Question(s) answered

If the question you have has not yet been answered here, use the form below to ask something about this addon.

(optional)
*(Required to be notified when an answer is available)
  • Asked by Roberto Mascilongo
    on 2019-03-18
    Our lubricant factory has two drum filling stations which were installed by the previous owner (there is no more indication about their manufacturer). Part of the equipment was removed when the factory closed and now that is open again the filling stations are missing the dip tubes. We were wondering if you could supply us with more information for this product (or similar products in your catalogue) from the mechanical and operational point of view so we can figure out if it can be adapted to fulfill our needs. We need a shut-off actuator to cut the flow of the liquid when the drum/s reach the target weight (the filling stations have platform scales on the ground). The filling stations have already a two dimensional moving mechanism where the dip tubes could be mounted.Best regards Answer:
