Conveyor

DESCRIPTION

ERIMAC conveyors allow the handling of unitarian load.

Our conveyors are available in 4 sizes:

  • Light series L loads <100 kg / m for handling of cartons, cans
  • Average series loads <250 kg / m for handling of  barrels
  • Heavy series XL loads < 1500 kg / m for handling of pallets, IBC containers
  • Very heavy series XXL loads < 2500 kg / m for handling of IBC containers

DOMAINS OF USE

Our machines are designed for industrial exploitation.

  • Atmosphere without specific constraint.
  • Atmosphere with specific constraint for use in chemical environments, food or pharmaceutique.For example: ISO 7 clean room or laboratory class D, GMP strain, ASM BPE, etc ...
  • Our machines can meet the requirements of the ATEX directive for use in explosive atmosphere Zone 1.21 and 2.22.

ADVANTAGES

  • Our machines are designed for industrial use (>1500 h/y)
  • The simplified maintenance allows a reduced asset Job
  • Our equipment is delivered fully assembled, ready for operation, it is provided with plate manufacturer CE, technical documentation and the EC declaration of conformity.
  • Equipment meets the requirements to the Machinery Directive 2006/42 /CE
  • Mechanical and electrical elements to standard industry
Rollers conveyors CRL
CRL 2000 L 400CRL 3000 M 650CRL 3000 XL 1300

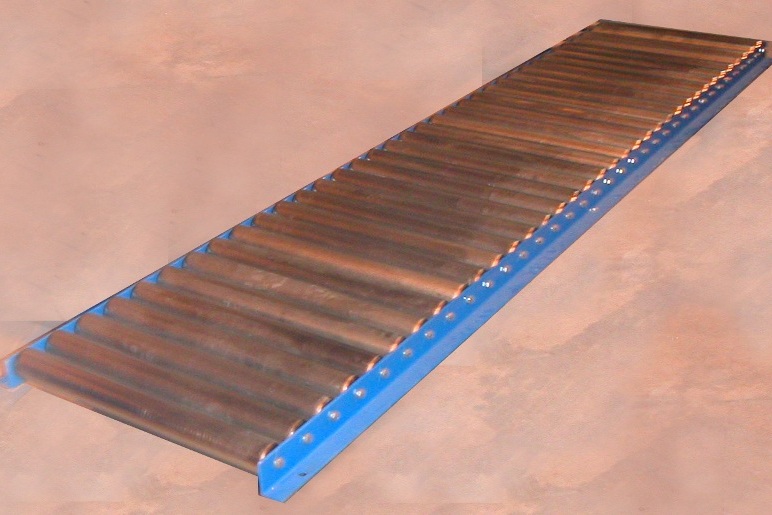

CRL L series

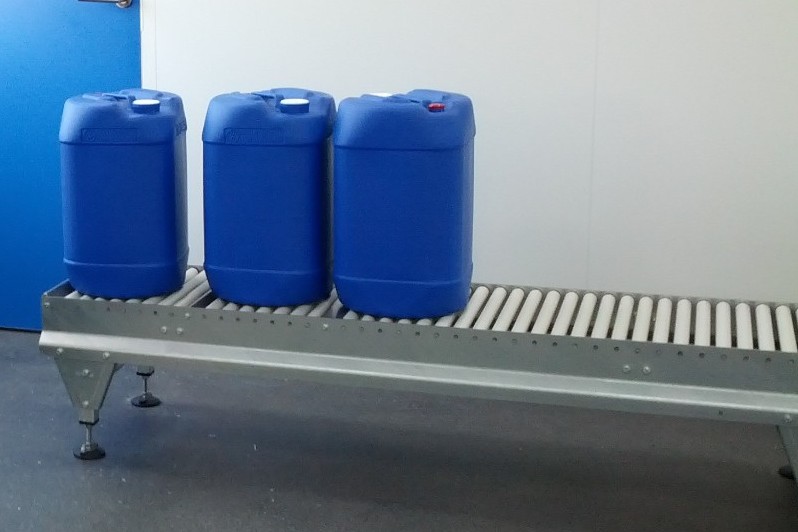

CRL M series

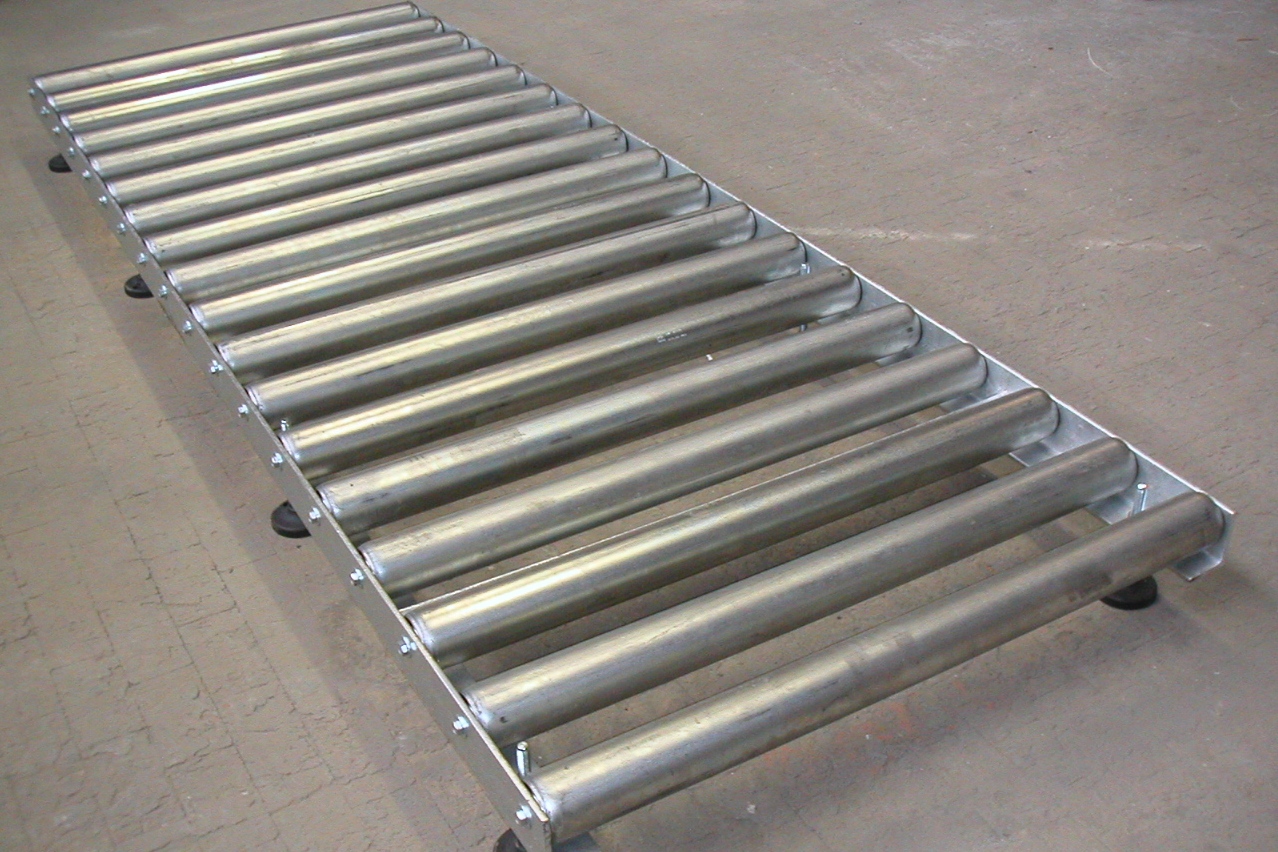

CRL XL series

characteristics

  • Manufacturing painted steel or stainless steel
  • Frame made of bent sheet metal with optimum retention
  • Rollers diam 30, 50, 70, PVC, zinc plated, stainless
  • Straight elements Length 800, 1000, 1500, 2000, 3000, other lenght on demand
  • Width 400, 500, 600, other widths on request
  • Conveyor elements can be connected
  • Elements 90 ° curve
  • Different adjustable heights are proposed
  • Manufacturing painted steel or stainless steel
  • Frame made of steel beam or bent sheet metal with optimum retention
  • Rollers diam 50, 60, 70, zinc plated, stainless
  • Straight elements Length 800, 1000, 1500, 2000, 3000, other lenght on demand
  • Width 650, 1300, other widths on request
  • Conveyor elements can be connected
  • Elements 90 ° curve
  • Different adjustable heights are proposed
  • Manufacturing painted steel or stainless steel
  • Frame made of steel beam or bent sheet metal with optimum retention
  • Rollers diam 70, 89, zinc plated, stainless
  • Straight elements Length 800, 1000, 1500, 2000, 3000, other lenght on demand
  • Width 650, 1300, other widths on request
  • Conveyor elements can be connected
  • Elements 90 ° curve
  • Different adjustable heights are proposed

Peripheral EQUIPMENT

  • Integrated or deported detection
  • Lateral guides
  • Gantry toolholders
  • Lifting gate
  • End stop
  • Decelerator load
  • Integrated or deported detection
  • Lateral guides
  • Gantry toolholders
  • Platelage of passage between rollers
  • End stop
  • Decelerator load
  • Loading device
  • Reinforced loading guide for forklift
  • Lift truck stop
  • Integrated or deported detection
  • Lateral guides
  • Gantry toolholders
  • Gate
  • Platelage of passage between rollers
  • End stop
  • Decelerator load
  • Loading device
  • Reinforced loading guide for forklift
  • Lift truck stop
Rollers powered conveyors CRM
2 CRM 6000 M 650CRM 2000 XL 1300CRM 3000 2XL 1300 ATEX

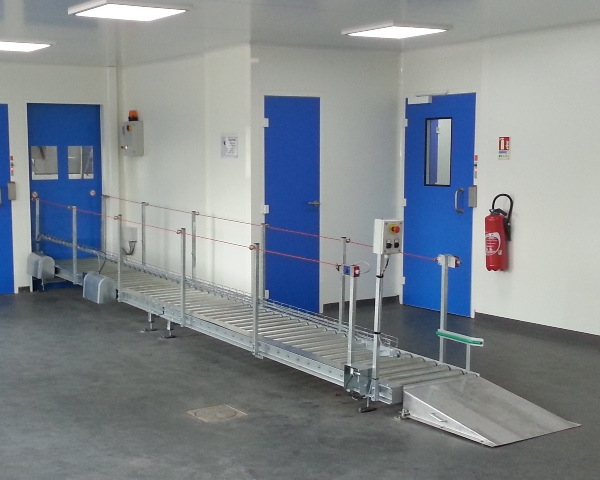

CRM M series

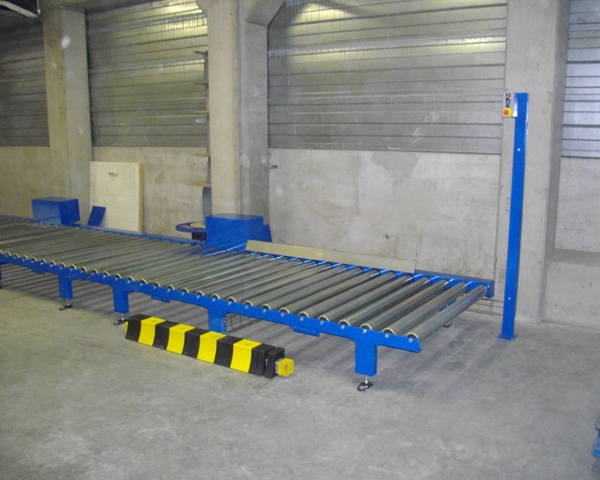

CRM XL series

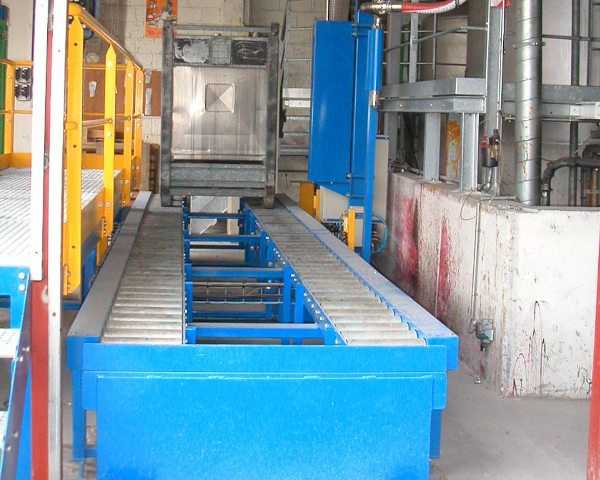

CRM 2XL series

characteristics

  • Manufacturing painted steel or stainless steel
  • Frame made in steel beam or in sheet steels folded with optimized retention
  • Rollers diam 30, 50, 70, zinc plated, stainless
  • Transmissions by bracelets of chains under crankcase
  • Straight elements Length 800, 1000, 1500, 2000, 3000, other lenght on demand
  • Width 650, 1300, other widths on request
  • Conveyor elements can be connected
  • Elements 90 ° curve
  • Different adjustable heights are proposed
  • Integration with existing automation
  • Speed 4 to 20 m / min.
  • Manufacturing painted steel or stainless steel
  • Frame made in steel beam or in sheet steels folded with optimized retention
  • Rollers diam 70, 89, zinc plated, stainless
  • Transmissions by bracelets of chains under crankcase
  • Straight elements Length 800, 1000, 1500, 2000, 3000, other lenght on demand
  • Width 650, 1300, other widths on request
  • Conveyor elements can be connected
  • Elements 90 ° curve
  • Different adjustable heights are proposed
  • Manufacturing painted steel or stainless steel
  • Frame made in steel beam or in sheet steels folded with optimized retention
  • Rollers diam 89, 102, zinc plated, stainless
  • Transmissions by bracelets of chains under crankcase
  • Straight elements Length 800, 1000, 1500, 2000, 3000, other lenght on demand
  • Width 1300, other widths on request
  • Conveyor elements can be connected
  • Different adjustable heights are proposed

Peripheral EQUIPMENT

  • Integrated or deported detection
  • Lateral guides
  • Gantry toolholders
  • Platelage of passage between rollers
  • End stop
  • Decelerator load
  • Loading device
  • Reinforced loading guide for forklift
  • Lift truck stop
  • Integrated or deported detection
  • Lateral guides
  • Gantry toolholders
  • Platelage of passage between rollers
  • End stop
  • Loading device
  • Reinforced loading guide for forklift
  • Lift truck stop
  • Integrated or deported detection
  • Lateral guides
  • Gantry toolholders
  • Platelage of passage between rollers
  • End stop
  • Loading device
  • Reinforced loading guide for forklift
  • Lift truck stop
Belt conveyor system CTM
CTBMC 3000 L 300 ATEXCTM 2000 M 500CTM 5000 XL 1300

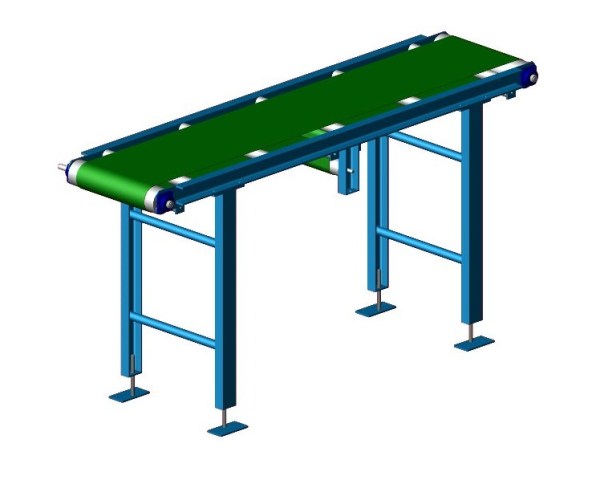

CTM L series
CTM M series

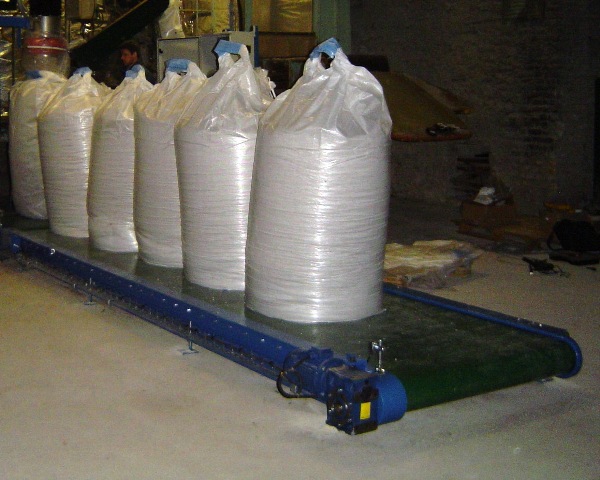

CTM XL series

characteristics

  • Manufacturing painted steel or stainless steel
  • Frame made of bent sheet metal with optimum retention

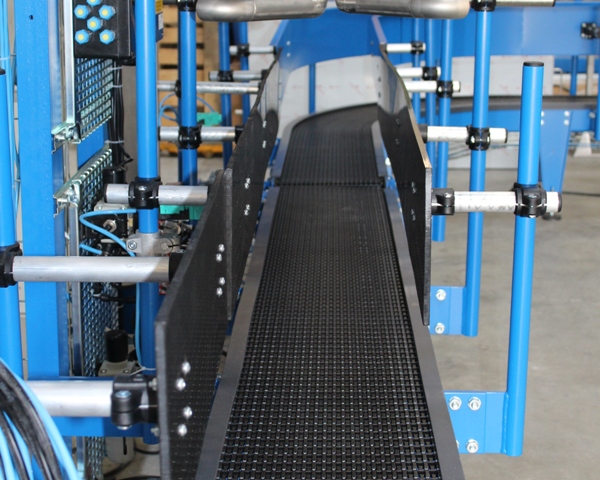

  • Modular belt
  • Straight elements Length 1000, 1500, 2000, 3000, other lenght on demand
  • Width 300, 400, other widths on request
  • Conveyor elements can be connected
  • Different adjustable heights are proposed
  • Integration with existing automation
  • Speed 4 to 20 m / min.
  • Manufacturing painted steel or stainless steel
  • Frame made in steel beam or in sheet steels folded with optimized retention
  • Sliding plate or support roller diam 70 zinc plated or stainless
  • Transmissions driving drum and gearmotor
  • PVC or rubber band
  • Straight elements Length 1000, 1500, 2000, 3000, other lenght on demand
  • Width 500, other widths on request
  • Different adjustable heights are proposed
  • Central tension or extremity
  • Integration with existing automation
  • Speed 4 to 20 m / min.
  • Manufacturing painted steel or stainless steel
  • Frame made in steel beam or in sheet steels folded with optimized retention
  • Sliding plate or support roller diam 70 zinc plated or stainless
  • Transmissions driving drum and gearmotor
  • PVC or rubber band
  • Straight elements Length 1000, 1500, 2000, 3000, other lenght on demand
  • Width 500, other widths on request
  • Different adjustable heights are proposed
  • Central tension or extremity
  • Integration with existing automation
  • Speed 4 to 20 m / min.

Peripheral EQUIPMENT

  • Integrated or deported detection
  • Lateral guides
  • End stop
  • Integrated or deported detection
  • Lateral guides
  • Gantry toolholders
  • End stop
  • Integrated or deported detection
  • Lateral guides
  • Reinforced loading guide for forklift
  • Lift truck stop
