Series 3 axles



FUNCTION

The 3-axles series machines are designed for the packaging of liquid, paste, foam or explosives in drums on pallets and / or in a container IBC
It brings the blade under the item
Moving the filling head above the containers

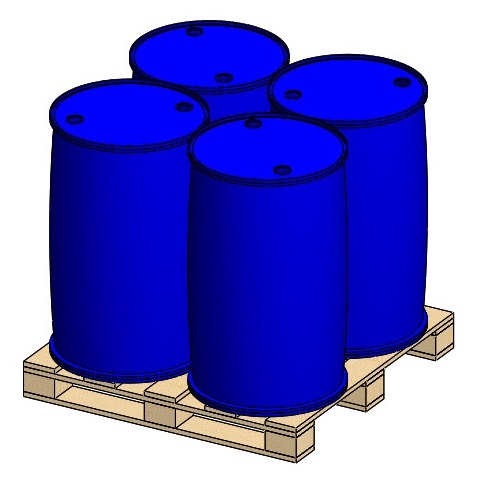

The polar shift in position (model L) is optimized for the filling of 4 drums on pallets or IBC, it nevertheless allows the timely filling of containers on pallets

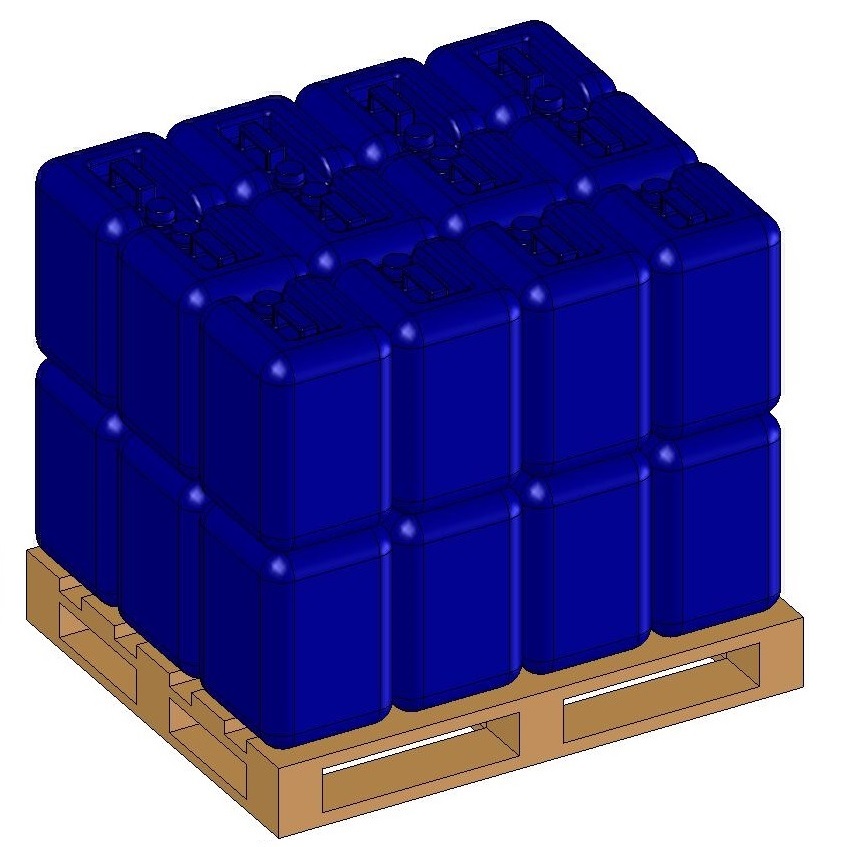

Cartesian displacement position (Model C) is optimized for the filling of cans on pallets requiring coverage area covering the pallet
Filling is by a dip pipe (XP model) or not diving (model XNP)

Characteristics

Capacities: drums of different heights with bung or total open, IBC containers, drums on pallets
Rates: following the flow of the pump, the viscosity of the product and local conditions, up to 70 barrels / h
Motion control
Model L (polar) Manual positioning (rotation X and Y translation) of drumming device. The rotation and translation are fitted with releasable locking device by trigger.
Model C (Cartesian) Manual positioning (translation X and Y translation) of drumming device. Translations X and Y are equipped with releasable locking device by trigger.

Few Exemples

ERIFUT 3 XP CERIFUT 3 XNP L ATEXSKID ERIFUT 3 XNP L

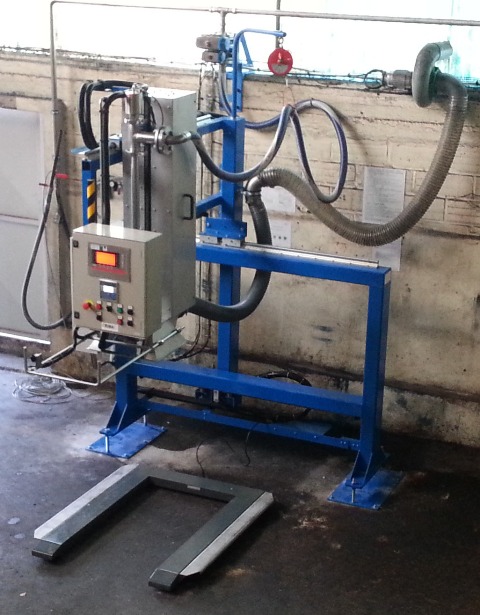

ERIFUT 3 XP C

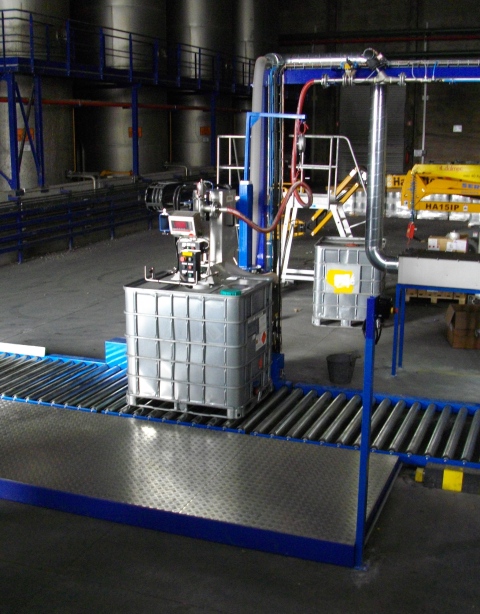

ERIFUT 3 XNP L ATEX

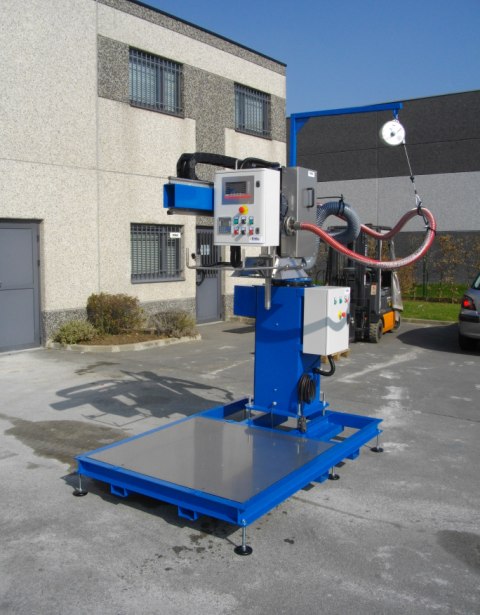

SKID ERIFUT 3 XNP L
