BIGBAG FILLING ERIBAG R

DESCRIPTION

The ERIBAG R allows packaging in granulated or powdered bigbags of 500 kg to 1.5 tones with a gravity feed or mechanized.

ERIMAC can provide a complete turnkey line to meet your budget requirements.

ERIBAG R are adaptable to different types of existing bags on the market, they allow a semi automatic filling of the bags. They allow a semi-automatic conditioning of packaging.

Through these many facilities we are able to offer you a solution dedicated to your specific requirements.

DOMAINS OF USE

Our machines are designed for industrial exploitation.

  • Atmosphere without specific constraint.
  • Atmosphere with specific constraint for use in chemical environments, food or pharmaceutique.For example: ISO 7 clean room or laboratory class D, GMP strain, ASM BPE, etc ...
  • Our machines can meet the requirements of the ATEX directive for use in explosive atmosphere Zone 1,21 and 2,22.

ADVANTAGES

  • The simplified maintenance allows a reduced asset job
  • Our equipment is delivered fully assembled, ready for operation, it's provided with plate manufacturer CE, technical documentation and EC declaration of conformity
  • They are ergonomically designed to optimize the conditions of handling and operator exposure in an improvement process complies with REACH requirement
  • Equipment meets the requirements to the Machinery directive 2006/42/CE
  • Mechanical and electrical elements to standard industry

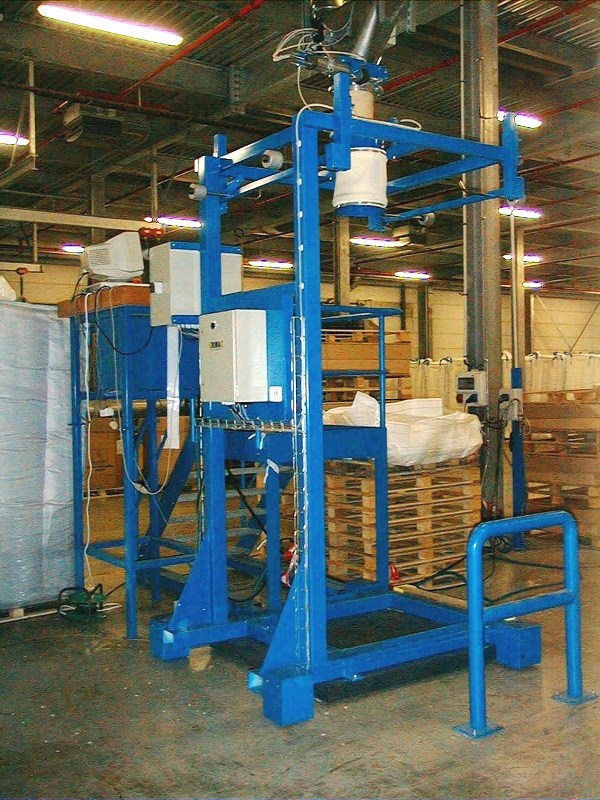

ERIBAG BG 600ERIBAG BG 600
ERIBAG R BG 600
ERIBAG R BG 1000

CHARACTERISTICS

DOSING SYSTEM

Construction

  • Manufacturing painted steel rust protection
  • Stainless Fabrication (shades and finishes on request)
  • Painted steel frame joint manufacturing and steel product circuit

Direct weighing the bag (gross weight)

  • Legal metrology assay solution with dedicated revenue management integrating type of assay parameters (high speed, low flow, error correction thrown towards weighed ticket printer management or backup)
  • Filling product level detection

The tightness of the bag and its retention during filling thanks to different filling mouth models

  • Mouth filling with a manuel bag holder
  • Mouth filling with a pneulmatic bag holder
  • Inflatable mouth single wall filler (product circuit)
  • Double-wall inflatable mouth (product circuit and dust aspiration)

The shaping of the bag by inflating before filling

  • Inflation motorized fan
  • Bypass system inflation and aspiration

Aspiration of fines and dust during filling and during the tying of the bag

  • Connection to an existing dust collector system
  • Dust collector dedicated to the installation

Several bigbag's sizes are possible

  • Height adjustment system
  • Pre-tensioning system and simplified stall

Various dosing systems are available depending on the product's specification

  • Pinch valve with 1 or 2 speeds with full flow
  • Helmet valve with 1 or 2 speeds with full flow
  • Butterfly valve with 1 or 2 speeds with full flow
  • Dosing screw
  • Guillotine valve 1 or 2 speeds
  • Rotary valve

ADDITIONAL ACCESSORIES

PERIPHERAL EQUIPMENT

Different additionals systems can be integrated according to the specifications of your products

  • Lump breakers
  • Vibratory screeners
  • Metal detector
  • Vibrating tables
  • Sampling

Handling and peripheral equipment can be integrated to suit your needs

  • Free or motorized roller conveyors
  • Labelling machine
  • Sealing machine
  • Sewing machine
  • Bag gripper
  • Bridge
  • Worktable
