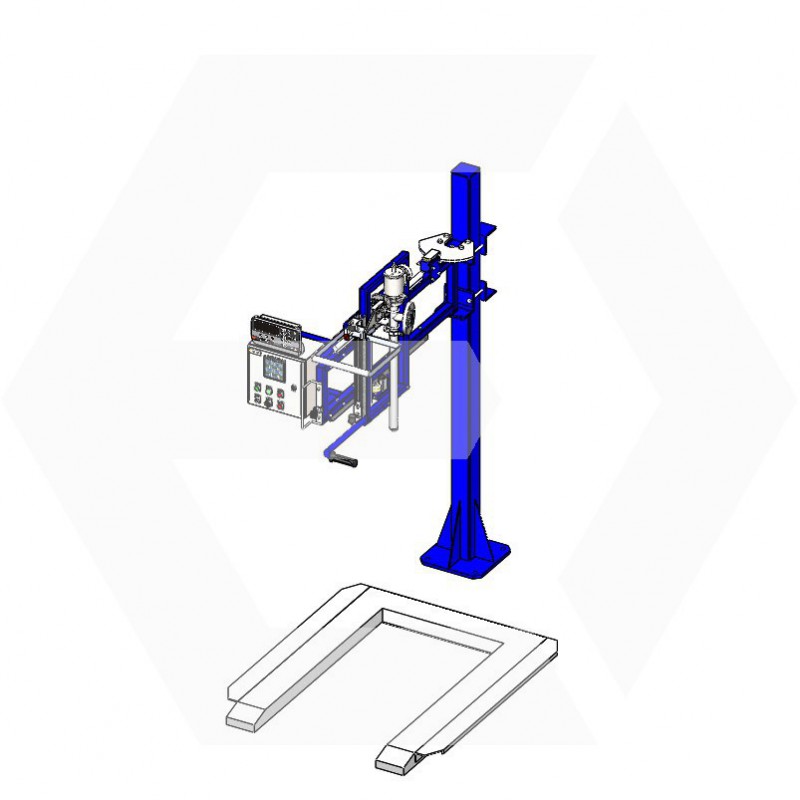

The ERIFUT 3 XNP LT DOSING allows the semi-automatic packaging in accordance with a target weight with a partial diving cane.
Machine sold with fill lance diameter 40 mm, stroke 420 mm stainless pneumatic actuator.
To order - deadline 5-6 weeks
Warning: Last items in stock!
Availability date:
DESCRIPTIONThe ERIFUT 3 XNP LT DOSING allows the semi-automatic packaging in accordance with a target weight with a partial diving cane. The ERIFUT 3 XNP LT DOSING is ergonomically designed to optimize the conditions of handling and operator exposure in an improvement process complies with REACH requirements :

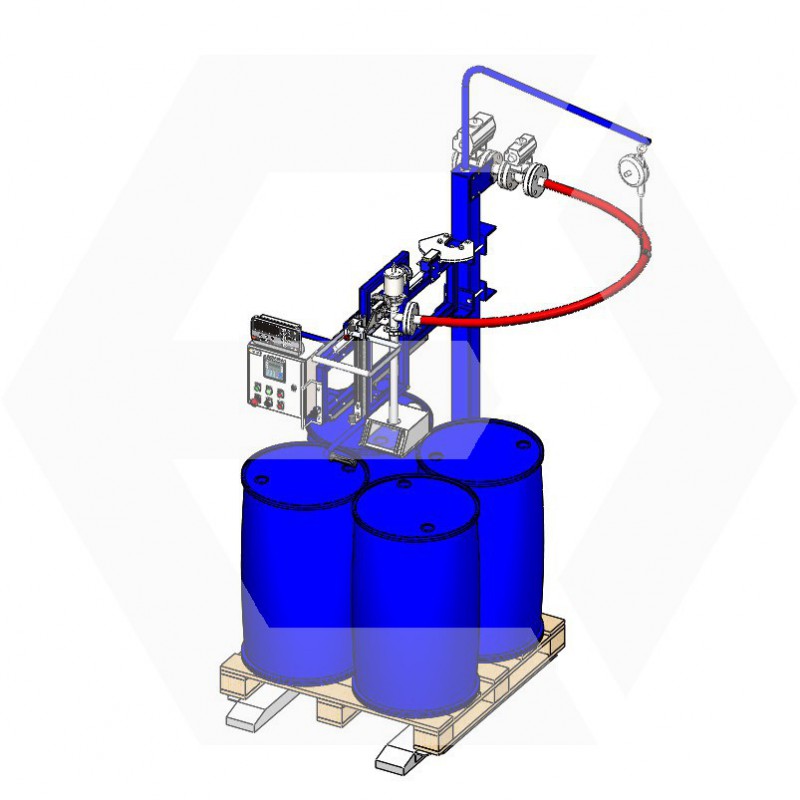

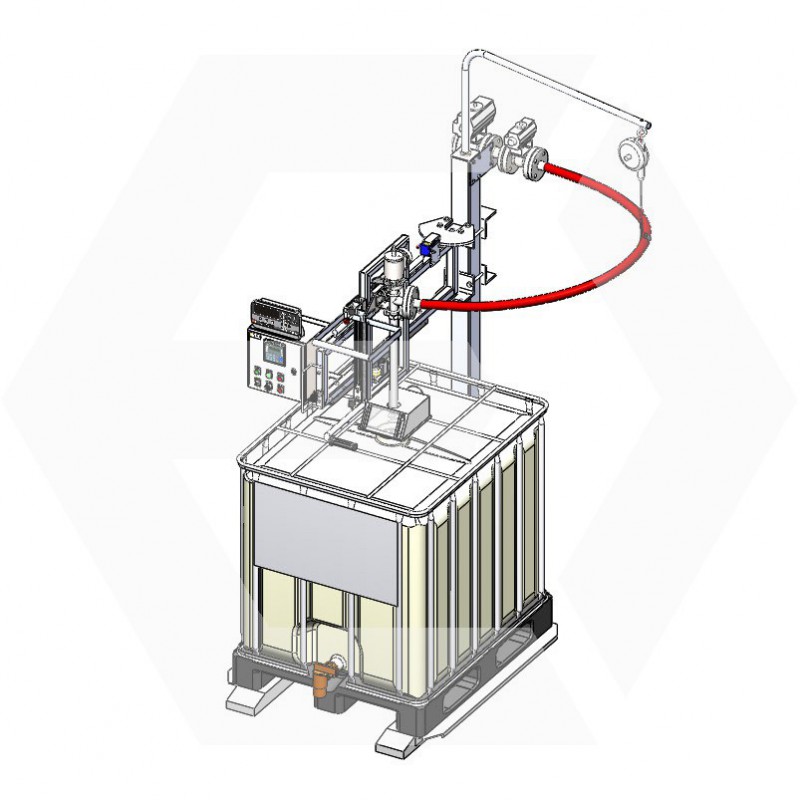

This configuration is ideal for the semi-automatic filling of 4 barrels on pallet or a container. The polar movement of filling device with locking in position allows to cover partially the surface of a pallet. The diving system indexable (stroke 420 mm) to manually ensure diving the dip tube into the container with a blocking high and low position of the tube. The stops positioning units are adjustable in height to allow the modification of the race. An assist spring allows to help the rise of drumming device. Filling is performed, based on a unit weight target, by an automatic filling cycle triggered by the operator | DOMAINS OF USEOur machines are designed for industrial exploitation.
| FEATURESMotion control
Management dosage packaging
Different weighing infrastructure are proposed according to your needs
The base configuration includes:
| ADVANTAGES
|
Height | 2110 mm |
Width | 600 mm |
Depth | 1880 mm max |
Weight | 313 kg |
Use | Industrial use less than 1000 H / year |
Rate | Up to 30 fûts / hour |
Packaging | Drum and container |
Product supply | Gravity, pump, pressure |
Flow | Advocated 8 m³/h |
Sound level | Less than 70 dB at 1m |
General construction | Painted steel rust protection |
Product circuit | Stainless steel 316L |
Power supply | 230 V |
Total power | 1 KW |
Pneumatic supply | 6 bars clean and dry / 100L/h |
Management height canes | Manual + spring support |
Dive of cane | Partial diving (420 mm stroke) |
Filling mode | On fixed level |
Managing multi-level packaging | Yes with manual settings |
Stroke adjuster of cane | Adjustable stroke in high and low position |
Diameter of the cane | Diameter 40 mm default |
Commercial transaction | yes, (NAWI) |
Range / step | 1500 Kg / 500 g échelon |
Device filling | Filling lance D40-C420 stanless steel pneumatic actuator |
Management dosage packaging | Automatic filling according to a target weight |
Rotation and translation braking | Included |
Documentation | Technical file including manual handling, mounting and connection, use, maintenance, spare parts list, EC certificate |
